Harley-Davidson Fat Boy Specs, Top Speed & Review
TL;DR
- The 2025 Harley-Davidson Fat Boy runs the Milwaukee-Eight 117 Custom V-Twin, producing 104 hp and 126 lb-ft of torque — an 11% power gain over the outgoing 114.
- Top speed is approximately 110–115 mph; 0–60 mph runs in roughly 4.3–4.5 seconds based on independent testing of the M8 114, with the 117 likely slightly quicker.
- Wet weight is 694 lb with a 26.6-inch seat height, making this one of the more accessible heavyweight cruisers at a standstill.
- Standard for 2025: cornering ABS, traction control, drag-torque slip control (DSCS), three ride modes, and TPMS — electronics that previous Fat Boys lacked entirely.
- US MSRP starts at $22,599; the limited 2025 Gray Ghost Icons Edition is $25,399.
Full Specs: 2025 Harley-Davidson Fat Boy
| Spec | Detail |
|---|---|
| Engine | Milwaukee-Eight 117 Custom V-Twin |
| Displacement | 1,923cc (117 cu in) |
| Bore x Stroke | 4.075 in x 4.5 in |
| Horsepower (claimed) | 104 hp @ 4,800 rpm |
| Torque (claimed) | 126 lb-ft @ 3,000 rpm |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
| Transmission | 6-speed Cruise Drive |
| Final Drive | Carbon-reinforced belt |
| Front Suspension | 49mm dual-bending valve telescopic fork, dual-rate spring |
| Rear Suspension | Hidden free-piston coil-over monoshock, hydraulic preload |
| Front Brake | 4-piston fixed caliper, 300mm disc |
| Rear Brake | 2-piston floating caliper, 292mm disc |
| Front Tire | Michelin Scorcher 11, 160/60R18 |
| Rear Tire | Michelin Scorcher 11, 240/40R18 |
| Wheelbase | 65.0 in (1,651mm) |
| Rake / Trail | 30° / 4.1 in |
| Ground Clearance | 4.9 in (125mm) |
| Seat Height | 26.6 in (676mm) |
| Wet Weight | 694 lb (315 kg) |
| Fuel Capacity | 5 gallons |
| Fuel Economy | 47 mpg combined |
| Range (est.) | ~235 miles |
| Electronics | Cornering ABS, TCS, DSCS, TPMS, 3 ride modes (Sport/Road/Rain), cruise control |
| US MSRP (2025) | $22,599 |

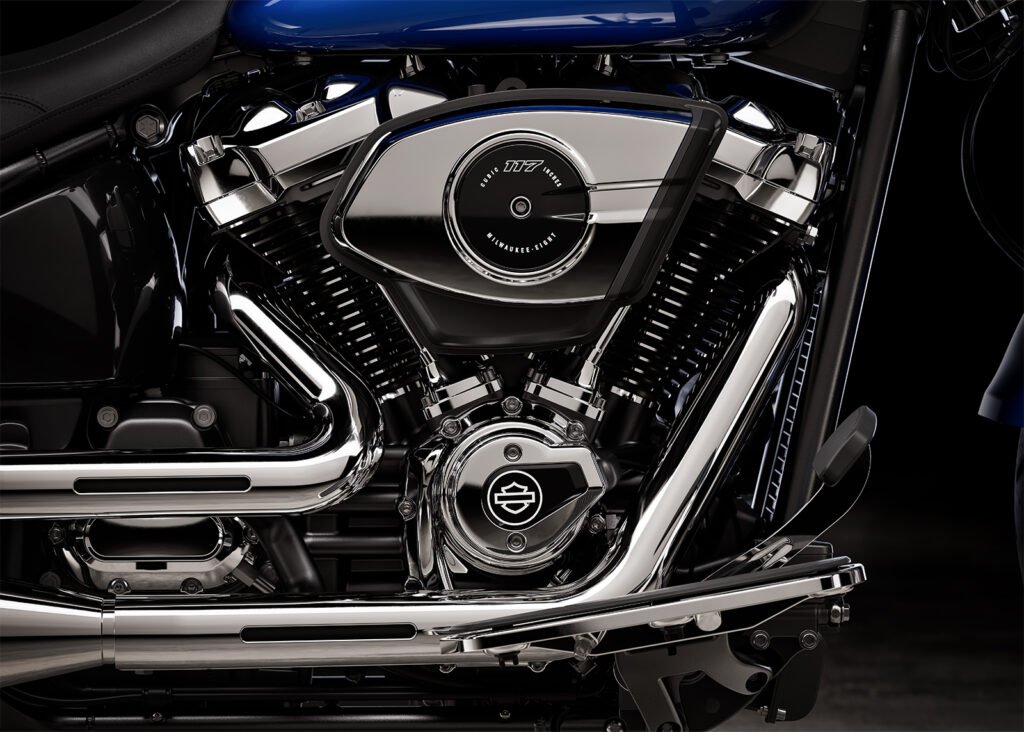

Engine and Performance: What the Milwaukee-Eight 117 Custom Actually Delivers
The 2025 Fat Boy runs the Milwaukee-Eight 117 Custom — not the same 117 in the Heritage Classic or Street Bob. The Custom tune, shared only with the Breakout, is the most aggressive street configuration Harley offers on this platform (Cycle World, 2024). Claimed output is 104 hp at 4,800 rpm and 126 lb-ft of torque at 3,000 rpm.
That torque peak at 3,000 rpm defines the riding experience. You don’t need to rev this motor to move traffic — it loads up from nearly idle and pulls hard before the tach climbs to 4,000. The 4.0-liter touring-style airbox, new for 2025, offers roughly 50% more intake volume than the Ventilator unit on the 2024 114 (Total Motorcycle, 2025). That breathing improvement plus revised cylinder heads accounts for the 11% power gain. Belt final drive means no chain to adjust or lube.
Fat Boy Top Speed and 0–60 Acceleration
Harley-Davidson does not publish official top speed or 0–60 figures for the Fat Boy. The numbers below are from independent tests and community-sourced data.
Top speed: Real-world testing on the M8 114 Fat Boy places top speed at approximately 110–115 mph before aerodynamics and the upright riding position limit forward progress (TopSpeed, 2023; SpeedMasti, 2026). The 117’s additional power may extend that marginally, but no independently tested figure for the 2025 model has been published.
0–60 mph: The M8 114 Fat Boy has been clocked at approximately 4.3–4.5 seconds in independent testing (Off Road Top Speed, 2025; Motorcycle Horizon, 2024). The 117 Custom adds 10 hp and 7 lb-ft, which should trim that slightly. That said, the 240mm rear Michelin’s large contact patch limits the slip-and-grip launch technique that shaves 0–60 times on narrower-tire bikes — the weight is honest and the launch reflects it.
Handling and Chassis: What 65 Inches of Wheelbase Feels Like
The 65.0-inch wheelbase and 30-degree rake make this bike’s intent clear: straight-line stability and relaxed sweepers, not canyon work. Ground clearance sits at 4.9 inches, and the 240mm rear tire limits lean angle compared to bikes on conventional 180 or 190 rubber.
The 49mm front fork with dual-bending valve damping tracks well over highway imperfections without the head-shake older M8 variants could show on rough pavement. The rear monoshock’s hydraulic preload adjustment lets you dial in stiffer for two-up riding without tools.
Braking is adequate but worth understanding. Ultimate Motorcycling’s 2025 Fat Boy review notes that on a bike approaching 900 lbs combined, the rear brake and 240mm tire contact patch carry more stopping weight than the “use the front” mantra suggests (Ultimate Motorcycling, 2025). Use both brakes deliberately and progressively.
Electronics: What Changed for 2025
The 2024 Fat Boy 114 shipped with cruise control and standard ABS only. The 2025 model adds cornering ABS (C-ABS), Traction Control System (TCS), Drag-Torque Slip Control (DSCS), and TPMS as standard equipment.
Three ride modes — Sport, Road, and Rain — adjust throttle mapping and intervention thresholds. Road is the daily default. Sport sharpens response. Rain tightens traction control and softens throttle input.
The cornering electronics factor in lean angle when applying corrections. On 694 lbs of cruiser, lean-sensitive ABS is a meaningful safety benefit — a front-wheel lock mid-corner at this weight is not recoverable. TPMS on the 240mm rear tire makes practical sense; pressure loss at highway speed is easy to miss until it isn’t.
Who Should Buy the Fat Boy
The Fat Boy suits experienced riders who want a torque-rich cruiser for long pavement miles. The 26.6-inch seat height is accessible for most riders, and the wide handlebar and forward controls produce a comfortable position for multi-hour stints.
Newer riders should be honest about the 694-lb wet weight. Slow-speed maneuvering — parking lot U-turns, tight three-point turns — demands real practice. The 4.9-inch ground clearance also means this is not the right tool for twisty mountain roads or any detour that isn’t paved.
Strengths:
- 126 lb-ft at 3,000 rpm delivers strong, usable roll-on power from low in the rev range.
- 26.6-inch seat height makes a heavy bike manageable at stops for most rider heights.
- 2025 electronics suite adds cornering ABS, TCS, DSCS, TPMS, and ride modes — a major upgrade.
- 47 mpg and a 5-gallon tank give roughly 235 miles of range.
- Belt final drive: no chain to adjust, no lube intervals.
Limitations:
- 694 lb demands respect at low speed; the low seat helps but doesn’t solve parking lot physics.
- 4.9-inch ground clearance limits lean angle — scraping is real if you push it.
- Harley publishes no official top speed or 0–60; all performance figures are independently sourced.
- $22,599 MSRP is high for a bike that lacked basic rider aids until the 2025 model year.
Frequently Asked Questions About the Harley-Davidson Fat Boy
What is the top speed of the Harley-Davidson Fat Boy?
Independent testing on the M8 114 Fat Boy places top speed at approximately 110–115 mph (TopSpeed, 2023). The 2025 M8 117 may extend that slightly, but Harley publishes no official figure. The upright riding position and wide front end limit top-end performance more than the engine does.
How fast does the Fat Boy go from 0 to 60 mph?
Independent testing on the M8 114 shows 0–60 times of approximately 4.3–4.5 seconds (Off Road Top Speed, 2025). The 2025 M8 117 adds 10 hp and 7 lb-ft, so the figure should be marginally lower. No published test for the 2025 model exists at time of writing.
What engine is in the 2025 Harley-Davidson Fat Boy?
The Milwaukee-Eight 117 Custom V-Twin, displacing 1,923cc. It produces 104 hp at 4,800 rpm and 126 lb-ft of torque at 3,000 rpm. This Custom tuning is exclusive to the Fat Boy and Breakout — other Softail 117 variants produce lower output.
How heavy is the 2025 Harley-Davidson Fat Boy?
694 lb (315 kg) wet. The 26.6-inch seat height and low center of gravity make it more manageable than the number suggests once moving, but slow-speed work still demands respect.
Does the 2025 Fat Boy have ABS and traction control?
Yes. Standard equipment includes cornering ABS, Traction Control System, Drag-Torque Slip Control, and TPMS — all lean-angle aware. The 2024 Fat Boy 114 had only standard (non-cornering) ABS; the full suite is new for 2025.
What is the MSRP of the 2025 Harley-Davidson Fat Boy?
The base 2025 Fat Boy starts at $22,599 in the US. The limited-edition 2025 Fat Boy Gray Ghost Icons Edition — capped at 1,990 units globally — starts at $25,399.
Key Takeaways
- Milwaukee-Eight 117 Custom: 104 hp and 126 lb-ft of torque, with peak torque arriving at just 3,000 rpm.
- Top speed approximately 110–115 mph; 0–60 mph approximately 4.3–4.5 seconds based on M8 114 testing.
- 694 lb wet weight; 26.6-inch seat height; 4.9 inches of ground clearance.
- 2025 adds cornering ABS, TCS, DSCS, TPMS, and three ride modes — the biggest practical improvement over the 2024 model.
- US MSRP starts at $22,599.
