Harley-Davidson Pan America 1250 Specs, Top Speed & Review
TL;DR
- The Pan America 1250 Special makes 150 hp and 95 lb-ft of torque from a 1,252cc Revolution Max liquid-cooled DOHC V-twin.
- Top speed is 141 mph (227 km/h), confirmed in an independent real-world test.
- 0-60 mph is approximately 3.4 seconds – among the quickest production Harleys ever made.
- The 2026 Pan America 1250 Special starts at $19,999.
- It’s a genuine adventure-touring machine: capable off-road, stable at highway speed, and loaded with electronics that actually work.
Pan America 1250 Full Spec Table
| Spec | Detail |
|---|---|
| Engine | Revolution Max 1250, liquid-cooled 60° V-twin, DOHC, 4-valve |
| Displacement | 1,252cc |
| Bore x Stroke | 105 mm x 72.3 mm |
| Compression Ratio | 13:1 |
| Power | 150 hp @ 8,750 rpm |
| Torque | 95 lb-ft @ 6,750 rpm |
| Transmission | 6-speed, wet multi-plate clutch |
| Final Drive | Belt |
| Front Suspension | 47mm inverted fork, electronically adjustable semi-active damping |
| Rear Suspension | Linkage-mounted shock, automatic electronic preload, semi-active damping |
| Front Brake | Dual floating discs, Brembo four-piston calipers |
| Rear Brake | Single disc, single-piston caliper |
| Front Tire | Michelin Scorcher ADV (120/70R19) |
| Rear Tire | Michelin Scorcher ADV (170/60R17) |
| Wheelbase | 62.4 in |
| Rake / Trail | 25° / 4.3 in |
| Seat Height | 31.1 in (low) / 32.0 in (high); ARH lowers further at stops |
| Wet Weight | 569 lbs (258 kg) |
| Fuel Capacity | 5.6 gal |
| Fuel Economy | ~40 mpg (Road Runner, 2022) |
| MSRP (2026) | $19,999 |
Top Speed: 141 mph on a Harley
The Pan America 1250 Special tops out at 141 mph (227 km/h). Harley doesn’t publish a factory top speed figure; the number comes from a full-throttle real-world run where the bike hit its limiter (TopSpeed, 2022). Testers held 140 mph through long motorway bends without instability (Asphalt & Rubber, 2021).
A light weave shows up around 115 mph under a full touring load. Unladen, the bike tracks straight to the limiter. The Michelin Scorcher ADV tires handle sustained highway speed without the wobble you’d get from a more aggressively knobbly dual-sport compound.
The engine behind those numbers: 150 hp at 8,750 rpm, 95 lb-ft of torque at 6,750 rpm, 9,500 rpm redline. Variable valve timing (VVT) broadens the torque curve so pull doesn’t fall off at the top of the rev range the way it does in older big-bore V-twins.
Harley-Davidson Pan America 1250 Acceleration and Power Delivery
The Pan America 1250 Special runs 0-60 mph in approximately 3.4 seconds. Harley publishes no official figure; the number is independently reported (Viking Bags, 2025). That puts a 569 lb adventure tourer in the same 0-60 neighborhood as mid-range sport bikes.
The Revolution Max 1250 uses VVT to keep torque available across a wide rev range. About 70% of peak torque is on tap at 4,000 rpm, per dyno data from Fuel Moto (2021). First gear launches hard, and the bike keeps pulling cleanly through every gear without the dead zone common to large V-twins tuned for pure low-end grunt. The belt final drive is smooth and requires no adjustment under normal use.

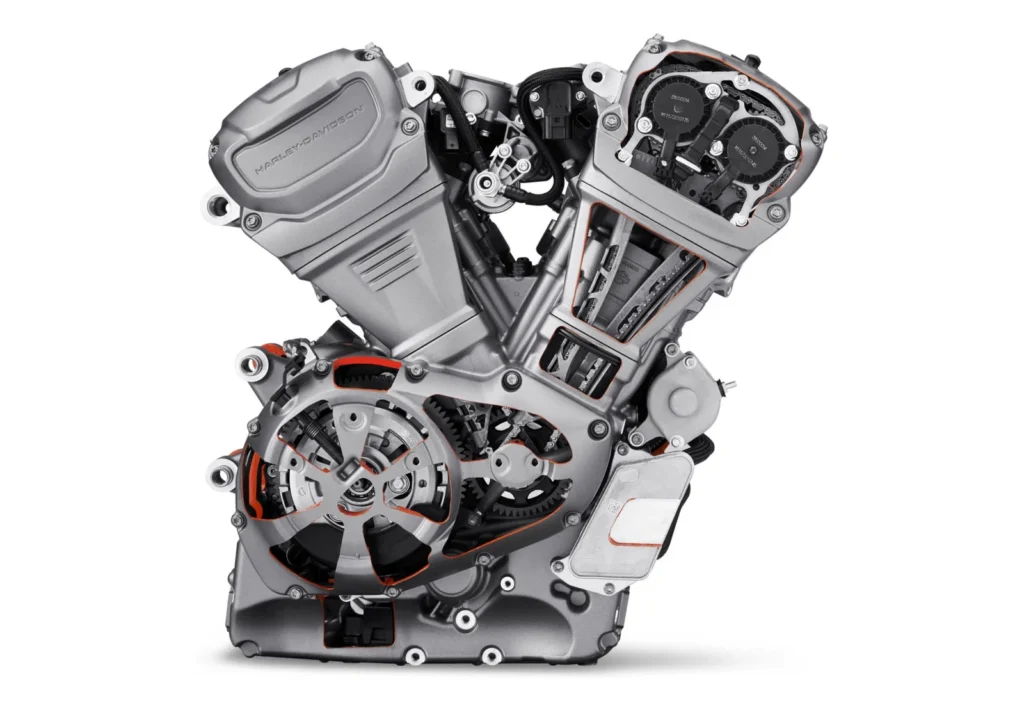

Revolution Max 1250 Engine and Chassis
The Revolution Max 1250 shares nothing mechanically with earlier Harley engines. It’s a 60-degree DOHC unit with liquid cooling, a timing chain, and a 13:1 compression ratio that requires premium fuel. The 45-degree pushrod air-cooled V-twin is a completely different machine.
The engine is a stressed chassis member – the front frame, mid-frame, and tail section bolt directly to the powertrain, eliminating traditional frame rails and increasing stiffness while reducing weight. The cast-aluminum swingarm keeps unsprung weight down.
Showa semi-active suspension on the Special reads rider load and adjusts rear preload automatically. Suspension travel is 7.5 inches front and rear. Brembo four-piston calipers up front are the real thing, not a cosmetic badge.
Electronics Package on the Pan America 1250 Special
Cornering ABS, cornering traction control, drag-torque slip control, vehicle hold control, tire pressure monitoring, and wheel lift mitigation all come standard. The 6.8-inch TFT touchscreen is readable in daylight and logically laid out.
Ride modes are Road, Sport, Rain, Off-Road, and Off-Road Plus, with two custom modes on the Special. Off-Road Plus allows controlled wheel slip and some front-end lift – the right setting for navigating loose terrain rather than fighting the electronics at every patch of gravel.
Adaptive Ride Height (ARH) lowers the seat automatically when stopped and raises it when underway. For a bike with a 31-32 inch seat height, this is a real usability improvement for riders in the 5’8″ to 6’0″ range.
Strengths and Limitations of the Pan America 1250
The Pan America 1250 is most at home on the highway. At 70-80 mph it’s quiet, stable, and comfortable. Wind protection from the large fairing is good. Fuel economy around 40 mpg with a 5.6-gallon tank gives roughly 210-220 miles per fill. Off-road capability is genuine: testers confirmed the bike handles jumping, sliding, climbing, and descending without drama in controlled conditions (Asphalt & Rubber, 2021).
The limitations are honest. At 569 lbs wet, it’s not a lightweight trail tool – drop it on a tight switchback and recovery is difficult. Exhaust heat dumps onto the right leg in stop-and-go traffic (Cycle World, 2024). The headlight falls short of European competitors in brightness and beam depth (Road Runner, 2022). Low-speed first-gear clutch engagement can feel abrupt.
Who Should Buy the Pan America 1250 Special
The Pan America 1250 Special makes sense for an experienced rider who wants one machine for cross-country touring and moderate off-road use, and who values American brand identity without sacrificing modern performance. It fits naturally for riders coming from a BMW R 1250 GS or KTM 1290 Super Adventure background.
New riders should look elsewhere. The power is aggressive, the weight is substantial, and managing the tall ergonomics in slow technical terrain takes experience. A 650cc class machine is the right starting point for ADV newcomers. Riders who want a lightweight trail-focused bike should also consider middleweight options before committing to 569 lbs.
Frequently Asked Questions
What is the top speed of the Harley-Davidson Pan America 1250?
The Pan America 1250 tops out at 141 mph (227 km/h), confirmed in an independent real-world test. Harley-Davidson does not publish an official top speed figure. The bike reaches this speed smoothly and stays stable in long highway bends (TopSpeed, 2022).
How fast is the 0-60 on the Pan America 1250?
The Pan America 1250 Special does 0-60 mph in approximately 3.4 seconds, based on third-party reporting – not a factory claim. It makes the Pan America one of the quickest production Harleys ever built (Viking Bags, 2025).
How heavy is the Harley-Davidson Pan America 1250 Special?
The Special weighs 569 lbs (258 kg) wet per Harley-Davidson’s claim. The base Pan America without the Special electronics package is approximately 534 lbs wet (Ultimate Motorcycling, 2021).
What engine does the Pan America 1250 use?
The Revolution Max 1250 is a 1,252cc liquid-cooled 60-degree DOHC V-twin with variable valve timing and 13:1 compression. It makes 150 hp at 8,750 rpm and 95 lb-ft of torque at 6,750 rpm (Harley-Davidson, 2026).
Is the Pan America 1250 good for off-road riding?
Yes, within the limits of its weight class. The 21-inch front wheel, 7.5 inches of suspension travel, Off-Road and Off-Road Plus ride modes, and optional laced wheels make it capable for gravel roads and rocky terrain. It’s not suited for hard technical enduro use.
What is the fuel economy of the Pan America 1250?
Real-world fuel economy is approximately 40 mpg at mixed highway speeds, with a 5.6-gallon tank giving a touring range of roughly 210-220 miles before reserve (Road Runner, 2022).
Key Takeaways
- 150 hp and 95 lb-ft of torque from the Revolution Max 1250 – the most powerful production Harley engine available.
- Top speed of 141 mph and 0-60 in ~3.4 seconds, both independently confirmed.
- Variable valve timing delivers usable torque from under 3,000 rpm through a 9,500 rpm redline.
- Showa semi-active suspension, Brembo brakes, cornering ABS, and Adaptive Ride Height are standard on the Special.
- 569 lbs wet, $19,999 MSRP, and genuine ADV credentials place it in the premium large-displacement class.
- Best suited for experienced riders touring long distances with a mix of pavement and moderate off-road terrain.
