KTM 1290 Super Adventure R: Top Speed, Specs & Review
TL;DR
- The KTM 1290 Super Adventure R produces 160 hp (claimed) at the crank; a rear-wheel dyno in Sport mode recorded 126 hp at 9,100 rpm (Rider Magazine, 2022).
- Top speed is reported at over 155 mph (250 km/h), based on independent track testing – KTM does not publish an official figure.
- Engine is a 1,301cc liquid-cooled LC8 V-twin (75-degree configuration) producing 138 Nm (102 lb-ft) of torque at 6,500 rpm.
- Suspension is fully adjustable WP XPLOR 48mm USD forks and WP XPLOR PDS shock, both with 220mm (8.7 in) of travel.
- US MSRP is $20,999; the 1290 Super Adventure R is best suited to experienced riders who want serious off-road capability without giving up highway manners.
KTM 1290 Super Adventure R Full Specs
The 2024 KTM 1290 Super Adventure R sits at the top of KTM’s adventure lineup as the off-road-focused variant. The “S” version (Street) gets semi-active electronic suspension and adaptive cruise control; the “R” trades those features for longer-travel, fully adjustable WP mechanical suspension, higher ground clearance, and wire-spoke wheels designed to accept tube-type tires.
| Spec | 2024 KTM 1290 Super Adventure R |
|---|---|
| Engine | 1,301cc LC8 V-twin, 75-degree, liquid-cooled |
| Bore x Stroke | 108mm x 71mm |
| Claimed Power | 160 hp @ 9,000 rpm |
| Rear-Wheel Power | 126 hp @ 9,100 rpm (Sport mode, dyno) |
| Torque | 138 Nm (102 lb-ft) @ 6,500 rpm |
| Transmission | 6-speed Pankl, PASC slipper clutch |
| Front Suspension | WP XPLOR 48mm USD, 220mm travel |
| Rear Suspension | WP XPLOR PDS shock, 220mm travel |
| Front Brakes | 2x 320mm discs, Brembo 4-piston radial calipers |
| Rear Brake | 267mm disc, 2-piston caliper |
| ABS | Bosch 10.3ME Cornering-ABS, Offroad ABS mode |
| Front Tire | 90/90-21 |
| Rear Tire | 150/70-18 |
| Wheels | Wire-spoke (tubeless-compatible) |
| Seat Height | 880mm (34.6 in) |
| Ground Clearance | 242mm (9.5 in) |
| Wheelbase | 1,577mm (62.1 in) |
| Steering Head Angle | 64.7 degrees |
| Dry Weight | 221 kg (487 lb) |
| Wet Weight | ~251 kg (553 lb) |
| Fuel Tank | 23 liters (6.1 US gal) |
| Fuel Consumption | 5.7 l/100 km (WMTC cycle) |
| Service Interval | 15,000 km (9,300 miles) |
| US MSRP | $20,999 |
Sources: KTM US official specs (2024); Motorcycle.com (2024); Rider Magazine dyno test (2022)
KTM 1290 Super Adventure R Top Speed: What the Data Actually Shows
KTM does not publish an official top speed figure for the 1290 Super Adventure R – that is standard practice for most manufacturers. Independent track testing reported by Motoplanete places top speed at over 250 km/h (155 mph). That figure is consistent with what the engine and gearing suggest, though adventure bike ergonomics – upright seating position, a relatively tall windscreen – mean wind resistance builds quickly above 120 mph.
For real-world reference, Rider Magazine’s dyno session on the mechanically identical 2022 model returned 126 hp at the rear wheel in Sport mode (Rider Magazine, 2022). The gap between that number and KTM’s claimed 160 hp at the crank is typical – drivetrain losses on a chain-drive motorcycle usually run 15-20%.
The sister LC8 engine in the 1290 Super Duke R – same 1,301cc architecture with higher-state tune and sport-focused gearing – was independently timed at 170 mph top speed and 0-60 mph in 2.75 seconds (MotoStatz). The Adventure R’s taller gearing and heavier weight mean it won’t replicate those sprint numbers, but 0-60 mph in the 3.5-4.0 second range is a reasonable estimate based on the power-to-weight ratio at wet weight. No independently instrumented 0-60 test for the Adventure R specifically has been published from a primary source; that estimate should not be treated as confirmed.
In practical terms, sixth gear at 80 mph puts the LC8 barely above idle. Passing power is there whenever you need it without a downshift, which is where the 138 Nm of torque earns its keep on two-lane roads.
The LC8 V-Twin Engine: What 1,301cc Feels Like to Ride

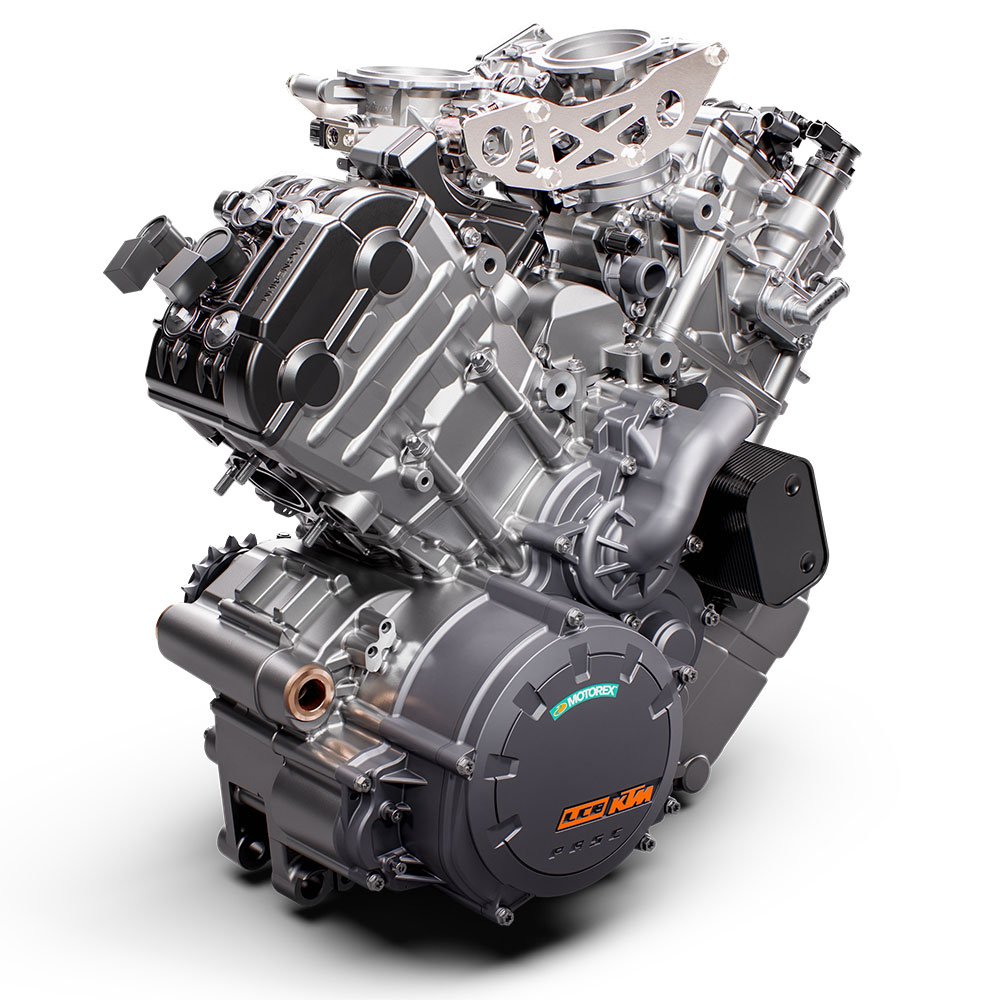

The LC8 engine is the heart of the whole 1290 Super Adventure lineup. It’s a 1,301cc 75-degree V-twin with double ignition, Keihin EMS with ride-by-wire (RBW), and a Pankl 6-speed transmission. KTM designed it around long service intervals – 15,000 km between oil and filter changes – which matters on a bike that might be three weeks into a Central Asia crossing when the reminder pops up.
The torque delivery is the standout characteristic. At 138 Nm, it pulls with authority from below 3,000 rpm, which means you don’t need to chase the rev counter to move fast. The engine character is very different from a parallel twin or an in-line four: there’s a V-twin thump and a physical presence to every power stroke. In Offroad mode, output is dialled down significantly – Rider Magazine’s dyno recorded 81 hp at 6,600 rpm in Offroad mode versus 126 hp in Sport mode (Rider Magazine, 2022) – which keeps the front wheel on the ground on loose terrain.
The PASC (Patent Anti Spin Clutch) slipper clutch smooths out aggressive downshifts and reduces lever pull weight compared to a conventional unit, which saves your hand on long days.
Suspension, Chassis, and Off-Road Capability
The “R” designation means fully adjustable, long-travel suspension – not electronic. Both ends use WP XPLOR components with 220mm (8.7 in) of travel. The fork is a 48mm upside-down (USD) unit; the rear uses a WP XPLOR PDS (Progressive Damping System) shock with separate spring preload and damping adjusters.
Ground clearance is 242mm (9.5 in), compared to 221mm (8.7 in) on the S variant. Wire-spoke wheels – 21-inch front, 18-inch rear – accept tube-type tires, which means a field repair with a tube is possible when you’re far from the nearest dealer.
The frame is a chrome-moly tubular space frame. KTM shifted the steering head position 15mm rearward on the current generation for tighter steering response. Wheelbase is 1,577mm (62.1 in) and the steering head angle is 64.7 degrees – geometry that favors stability at highway speed while still allowing the bike to turn with reasonable effort off-road.
Twin 320mm Brembo radial-mount four-piston calipers handle front braking and a 267mm disc at the rear. Bosch 10.3ME Cornering-ABS is standard and includes an Offroad ABS mode that deactivates rear ABS to allow rear wheel lockup, with front-wheel lift detection.
Electronics Package: Ride Modes, IMU, and the Rally Mode Option
The 1290 Super Adventure R runs a Bosch 6-axis IMU (Inertial Measurement Unit) as the backbone of its electronics. The IMU feeds data to five rider systems simultaneously: traction control (MTC – Motorcycle Traction Control), cornering ABS, cornering lights, anti-wheelie, and ABS calibration. The package is genuinely sophisticated for a motorcycle that’s also expected to ford rivers.
Standard ride modes are Sport, Street, Offroad, and Rain. A fifth mode – Rally – is an optional download. In Rally mode, traction control becomes 9-level user-adjustable, which lets skilled off-road riders dial in exactly how much rear wheel slip they want on loose terrain.
| Ride Mode | Power Level | ABS Setting | Traction Control |
|---|---|---|---|
| Sport | Full (126 hp rw) | Cornering ABS active | Standard MTC |
| Street | Full | Cornering ABS active | Standard MTC |
| Offroad | Reduced (~81 hp rw) | Front only | Rear slip allowed |
| Rain | Reduced | Full | Maximum intervention |
| Rally (optional) | Full | Front only | 9-level user adjustable |
Rider Magazine dyno figures, 2022

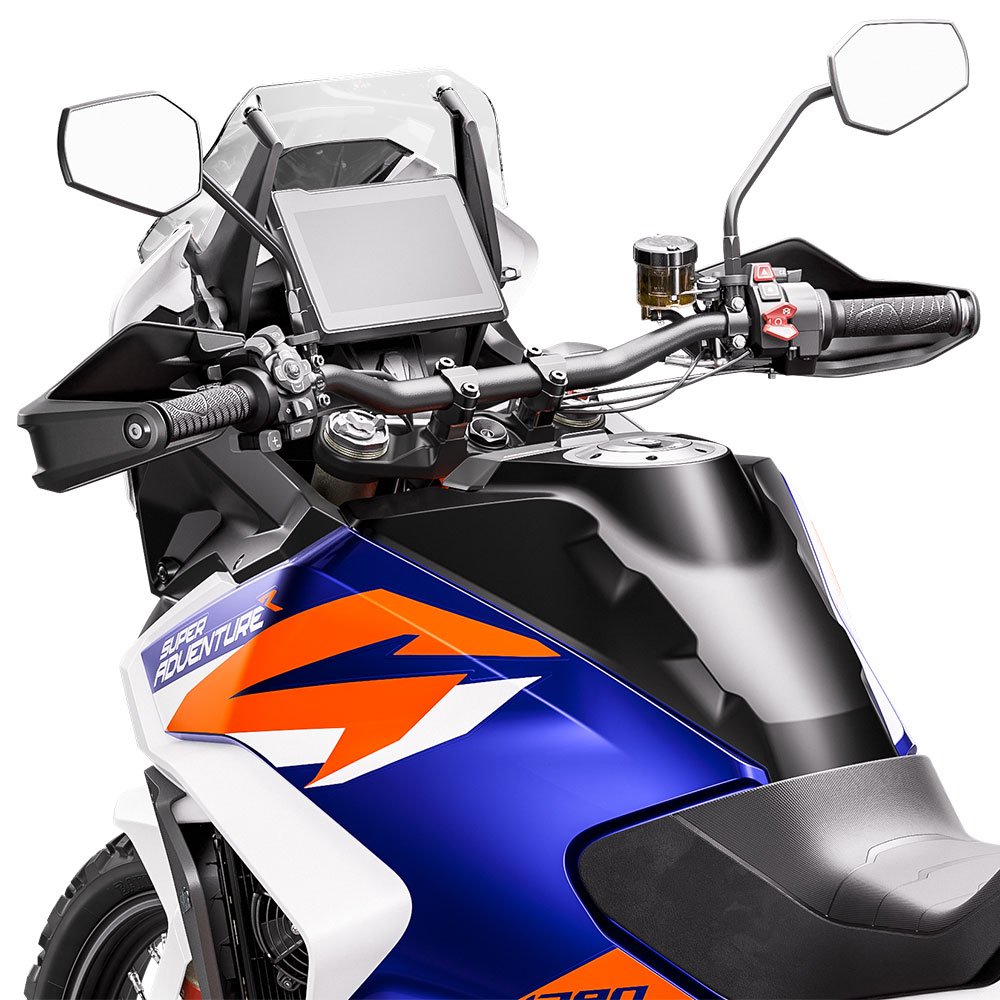

Other electronics: TPMS (Tire Pressure Monitoring System) with display on the 7-inch TFT, keyless ignition with Anti Relay Attack (ARA) security system, and KTMconnect Bluetooth for turn-by-turn navigation, phone calls, and music.
Real-World Ownership: What Long-Term Tests Say
Motorcycle News ran a long-term test with the 1290 Super Adventure R across 5,551 miles in 2023 covering mixed roads and off-road terrain. The summary: the bike’s off-road performance is excellent for its size and weight, the engine is thrilling, and it rewards experienced riders. MCN also noted occasional electronic reboots in sustained wet conditions – not a safety issue, but worth knowing before a multi-day trip departs.
The 34.6-inch seat height is a real consideration for shorter riders. At 5’8″ or under, most riders can only get one foot flat and one toe-touch at a stop. That’s manageable on smooth pavement but becomes stressful on uneven ground or when fully loaded with luggage. There is no factory lowering option for the R model.
The 23-liter tank at an estimated real-world consumption of 5.7 l/100 km gives a range of roughly 400 km (250 miles) before reserve – useful on remote routes where fuel stops are far apart.
Service intervals of 15,000 km (9,300 miles) for oil and filter are long, but KTM’s US dealer network in rural areas is thinner than Honda’s or BMW’s. Budget that into any remote touring plan.
Who the KTM 1290 Super Adventure R Is Actually For
The 1290 Super Adventure R is for riders who genuinely plan to use the off-road capability. It’s a big, expensive, powerful motorcycle that rewards skill and experience. If your adventure riding is mostly paved highways with the occasional gravel road, the S variant’s semi-active suspension and adaptive cruise control are a better fit for the money.
The R makes sense for riders who want maximum suspension travel for extended dirt, gravel, and trail use; who are 5’10” or taller and can manage the seat height without stress; who have enough experience to use the electronics deliberately; and who understand that a 551-lb wet motorcycle requires respect in technical terrain regardless of how capable it is on paper.
At $20,999 MSRP, the spec-per-dollar ratio is strong. 220mm travel suspension, Brembo brakes, a six-axis IMU, and a proven high-torque engine at that price point is a solid package.
Frequently Asked Questions About the KTM 1290 Super Adventure R
What is the top speed of the KTM 1290 Super Adventure R?
KTM does not publish an official top speed. Independent testing places the 1290 Super Adventure R at over 155 mph (250 km/h) on track (Motoplanete, 2024). Real-world comfortable cruising is 80-100 mph, where the long-travel suspension and upright ergonomics work well together. Pushing past 120 mph requires commitment against wind resistance.
How much horsepower does the KTM 1290 Super Adventure R make at the rear wheel?
In Sport mode, the 2022 model produced 126 hp at 9,100 rpm at the rear wheel on a dyno run by Jett Tuning, as reported by Rider Magazine (2022). KTM’s claimed crank figure is 160 hp. In Offroad mode, rear-wheel output dropped to 81 hp. These figures apply to the current generation, which shares the same engine architecture.
What is the difference between the KTM 1290 Super Adventure S and the KTM 1290 Super Adventure R?
The S and R share the same LC8 engine, frame, and electronic platform. The R gets mechanical WP XPLOR suspension with 220mm travel, wire-spoke wheels, 9.5 inches of ground clearance, and a fixed 34.6-inch seat height. The S adds semi-active suspension, adaptive cruise control, and a lower seat option at 33.4 inches. The R is the off-road specialist; the S leans toward road touring with off-road capability.
Is the KTM 1290 Super Adventure R good for beginners?
No. At 251 kg wet, 160 hp claimed, and a 34.6-inch seat height, this is a motorcycle for experienced riders. The electronics package will catch mistakes, but it can’t substitute for seat time and low-speed balance skills. Riders new to adventure bikes should look at smaller-displacement options first.
What is the service interval on the KTM 1290 Super Adventure R?
KTM specifies oil and filter changes every 15,000 km (approximately 9,300 miles). This is one of the longer service intervals in the adventure segment and makes the bike practical for extended touring. Major valve clearance checks occur at longer intervals per KTM’s maintenance schedule.
Does the KTM 1290 Super Adventure R have a quickshifter?
The 1290 Super Adventure R does not include a quickshifter as standard equipment. The Pankl 6-speed transmission with PASC slipper clutch shifts cleanly without one, but up-and-downshift autoblippers are not part of the standard package. A quickshifter may be available as a KTM PowerPart accessory – confirm with your dealer.
Key Takeaways
- The KTM 1290 Super Adventure R produces 126 hp at the rear wheel in Sport mode (Rider Magazine dyno, 2022); KTM’s claimed crank output is 160 hp.
- Top speed exceeds 155 mph based on independent testing; KTM does not publish an official figure.
- WP XPLOR suspension front and rear delivers 220mm of travel at both ends – fully adjustable mechanically with no electronic intervention.
- The Bosch 6-axis IMU feeds five rider-aid systems; the optional Rally mode gives 9-level user-adjustable traction control.
- Wet weight of 251 kg and a fixed 34.6-inch seat height mean this bike demands experienced hands and ideally riders 5’10” or taller.
- At $20,999 MSRP, the 1290 Super Adventure R offers a capable off-road-ready adventure package with Brembo brakes, premium WP suspension, and a proven high-torque engine.
