Kawasaki KLX140R Specs, Horsepower & Performance Review
TL;DR
- The 2026 Kawasaki KLX140R runs a 144cc air-cooled single making roughly 9 to 12 hp depending on where it’s measured, paired with a 5-speed manual clutch gearbox.
- MSRP is $3,799 plus a $315 destination charge, and curb weight is 205 lb with the tank at 90 percent full.
- Seat height is 30.7 inches, making this the small-wheel trim built for younger or shorter riders stepping up from a KLX110.
- There’s no top speed or 0-60 spec because this is a closed-course trail bike, not a street-legal machine.
- A Keihin PB20 carburetor and digital CDI ignition keep the fuel and spark side simple enough for a home mechanic to service.
What Are the Kawasaki KLX140R’s Full Specs?

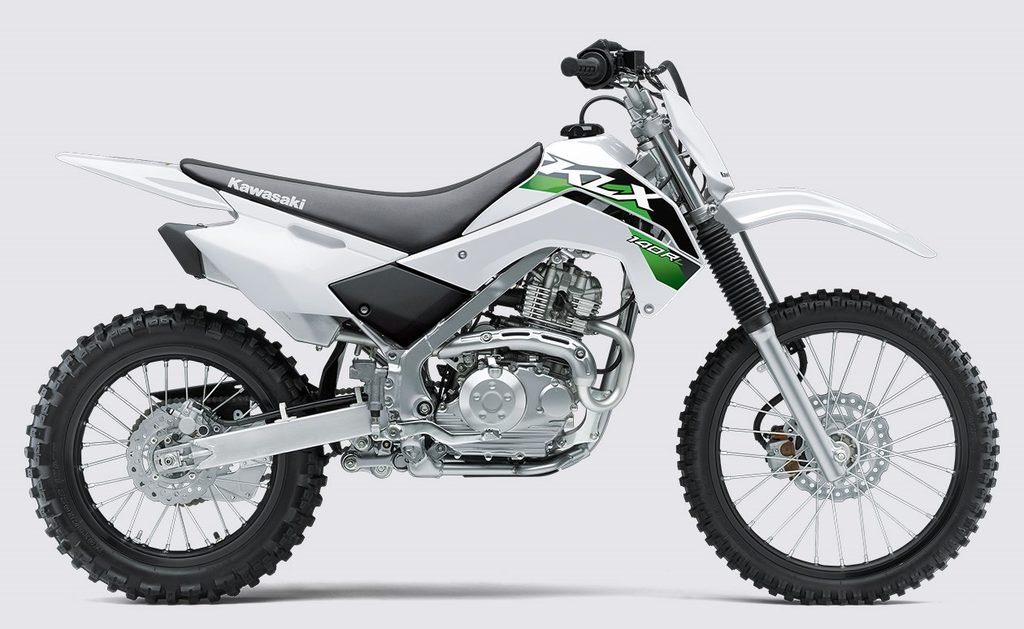

The KLX140R is a 144cc air-cooled trail bike with a 5-speed manual transmission, a Keihin PB20 carburetor, and a steel perimeter frame. It’s the small-wheel version of Kawasaki’s KLX140 family, sitting under the KLX140R L and KLX140R F in wheel size and seat height (Kawasaki, 2026).
| Spec | KLX140R (2026) |
|---|---|
| Engine | 144cc air-cooled SOHC single |
| Bore x stroke | 58.0 x 54.4mm |
| Compression ratio | 9.5:1 |
| Fuel system | Keihin PB20 carburetor |
| Ignition | Digital DC-CDI |
| Transmission | 5-speed, manual clutch |
| Front tire | 70/100-17 |
| Rear tire | 90/100-14 |
| Seat height | 30.7 in |
| Curb weight | 205.0 lb |
| Dry weight | 191.7 lb |
| Fuel capacity | 1.5 gal |
| Wheelbase | 49.6 in |
| MSRP | $3,799 (plus $315 destination) |
All specs above come straight from Kawasaki’s 2026 KLX140R product page. Wheel sizes are the giveaway for which KLX140 trim you’re looking at: the base R runs a 17-inch front and 14-inch rear, the R L steps up to 19-inch/16-inch, and the R F goes full-size at 21-inch/18-inch.
How Much Horsepower Does the KLX140R Make?
Kawasaki doesn’t publish an official horsepower number for the KLX140R, which is normal for small-displacement trail bikes in this class. The figures floating around range from about 9 to 12 hp depending on who’s measuring and where.
A rear-wheel dyno test posted on the ThumperTalk forum measured a bone-stock KLX140 at 9.38 hp at 6,880 rpm, with a Pro Circuit pipe bumping that only slightly to 9.57 hp (ThumperTalk, 2022). That’s rear-wheel output, which always reads lower than crank horsepower because of drivetrain loss through the chain and clutch.
On the other end, a RIVA Motorsports dealer listing for the shared-platform KLX140R F cites 11 hp at 8,000 rpm for the same 144cc engine (RIVA Motorsports, 2026). Motorcycle.com’s review of the KLX140R L estimated the engine at “about 11-12 hp” without citing a specific test, calling the motor bulletproof over its service life if you keep up with oil and air filter changes.
Treat any number in this range as a reasonable estimate rather than a hard spec. If you’re cross-shopping based on horsepower alone, the takeaway is that this engine is tuned for smooth, predictable torque delivery at low rpm, not peak output.
How Does the Small-Wheel R Trim Ride Compared to the L and F?
The R trim’s 17-inch front and 14-inch rear wheels sit lower to the ground than its siblings, which is exactly the point. Seat height on the R is 30.7 inches, letting a shorter or younger rider get both feet flat at a stop.
The larger-wheeled R L and R F trims share the same 144cc engine, frame, suspension, and brakes. The only functional difference across all three trims is wheel diameter and the seat height that comes with it. A taller rider who’s outgrown the R but isn’t ready for a full-size 230cc bike is the target buyer for the R F.
Smaller wheels also mean a smaller footprint over roots and rocks, so the base R trades some rollover ability for confidence at a stop. That’s a fair trade for a rider who’s still building balance and clutch feel.
What’s the Suspension and Brake Setup Like?
Up front, the KLX140R uses a basic 33mm telescopic fork with 7.1 inches of travel and no external adjustability. The rear runs Kawasaki’s Uni-Trak linkage with a single shock offering 5-way preload adjustment, also at 7.1 inches of travel.
Braking is a single 220mm petal disc up front with a dual-piston caliper, and a 186mm petal disc out back with a single-piston caliper. There’s no ABS on this bike, which is standard for the class and expected on a closed-course trail machine at this price point.
The lack of adjustability up front isn’t a knock against the bike. A youth or beginner trail bike doesn’t need compression clickers; it needs predictable, forgiving damping that won’t punish a rider who’s still learning to read the trail.
What Should You Budget for Maintenance on a KLX140R?
Because this engine is air-cooled with a simple carburetor and CDI ignition, routine maintenance is straightforward and cheap compared to a liquid-cooled, fuel-injected trail bike. Expect oil and filter changes on the same interval as any small air-cooled single, plus periodic valve clearance checks since it uses a screw-and-locknut adjuster rather than shims.
The Keihin PB20 carburetor is easy to jet or clean at home, but it does need attention if the bike sits in storage. Draining the float bowl before long-term storage prevents the stale-fuel gumming that carbureted trail bikes are prone to, especially with ethanol-blended pump gas.
Chain maintenance matters more on a small-wheel trail bike than people expect, since the shorter final drive run sees more flex and dirt intrusion on rough trails. Check chain slack and lube it after every muddy or dusty ride, not just on a calendar schedule.
Frequently Asked Questions
What is the horsepower of the Kawasaki KLX140R?
Kawasaki doesn’t publish an official figure. Independent estimates range from 9.38 hp at the rear wheel in a stock dyno test to 11 hp at the crank per a dealer spec sheet for the shared engine.
What is the top speed of the KLX140R?
Kawasaki does not publish a top speed for the KLX140R because it’s a closed-course trail bike, not a street-legal motorcycle. Top speed and 0-60 figures aren’t relevant metrics for this class of bike.
How much does a 2026 Kawasaki KLX140R cost?
MSRP is $3,799 before the $315 destination charge, taxes, title, and any dealer fees. Dealers set the final retail price, so actual out-the-door pricing varies.
What’s the difference between the KLX140R, R L, and R F?
All three share the same 144cc engine, frame, suspension, and brakes. The only difference is wheel size and the seat height that comes with it: the R runs 17F/14R wheels, the R L runs 19F/16R, and the R F runs full-size 21F/18R wheels for taller riders.
Is the KLX140R good for a beginner?
Yes. The low 30.7-inch seat height, manageable 205-lb curb weight, and mellow low-rpm power delivery make it a common step-up bike from a KLX110 for younger or new riders still building confidence off-road.
Does the KLX140R have electric start?
Yes, the KLX140R comes with electric start, which removes one common frustration point for new riders who haven’t built the technique for kick-starting a cold engine.
